D2 LCD – Multifunction Meter

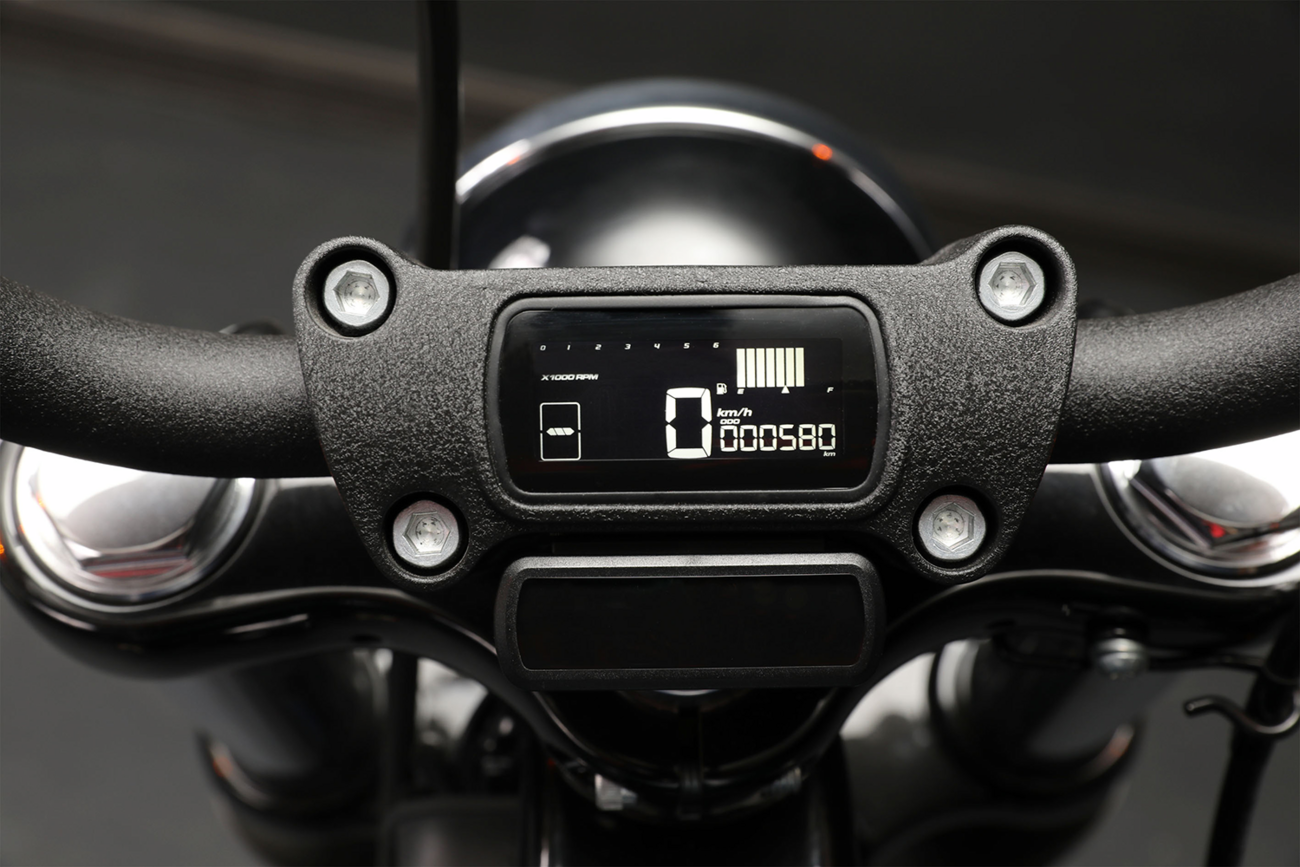

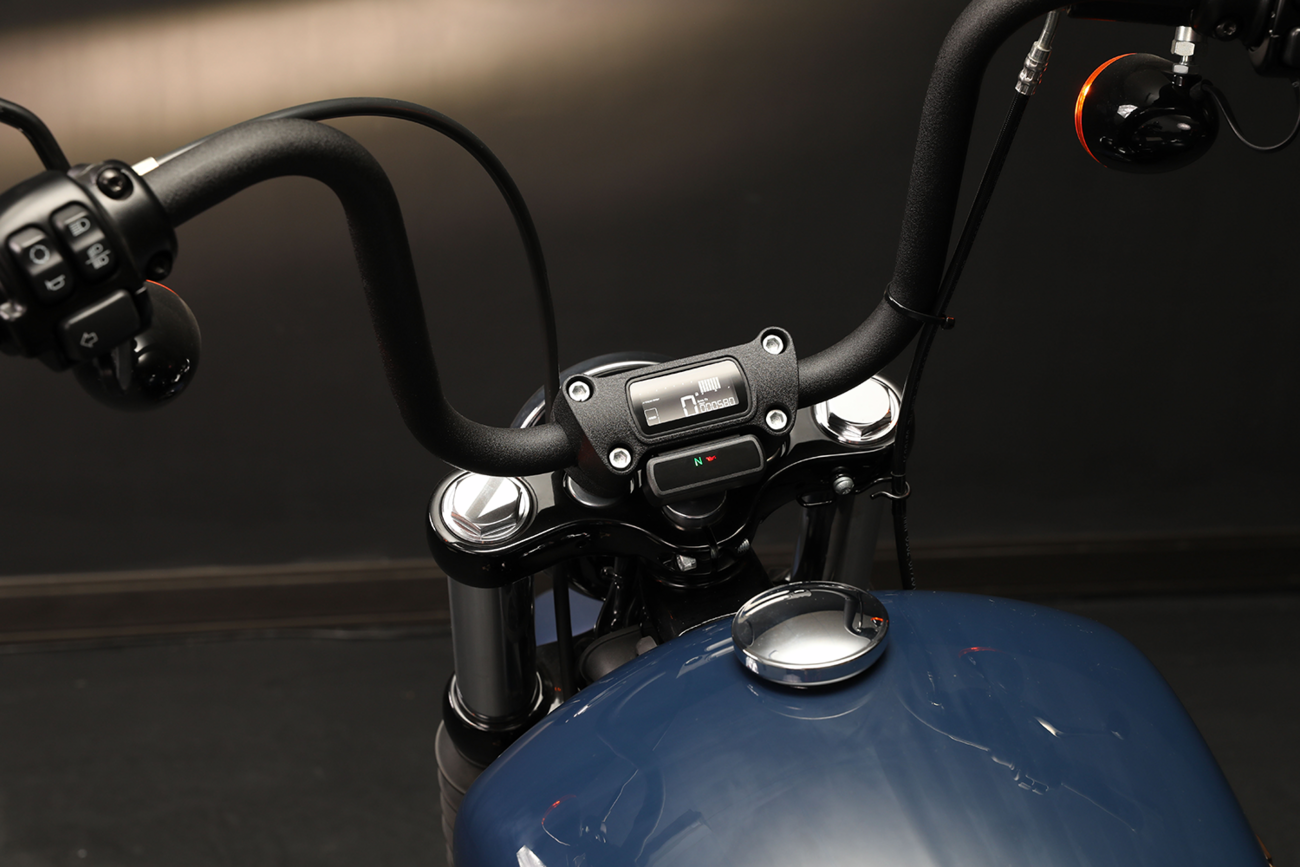

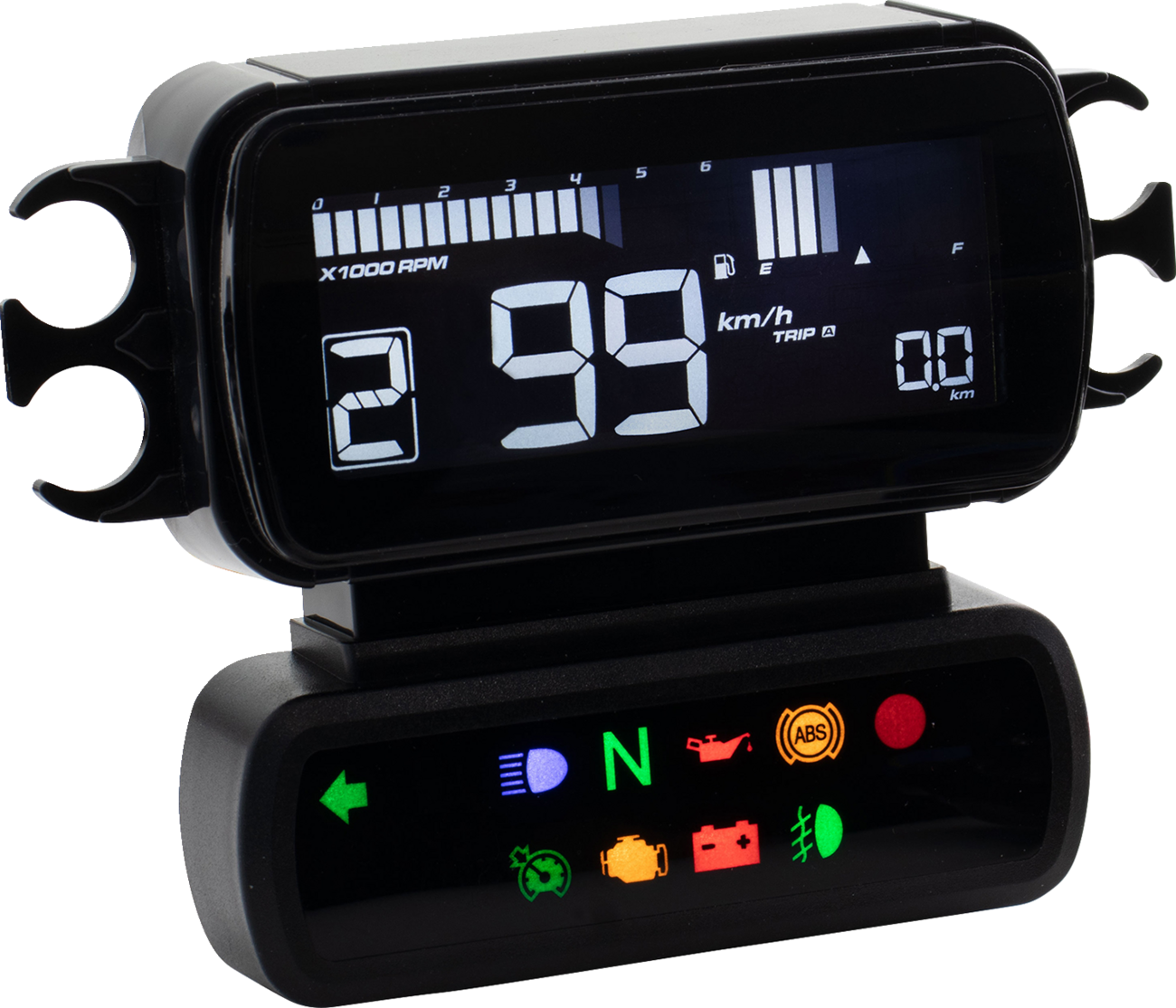

High quality plug & play meter that is equipped with an 8-color changeable LCD display; Designed to mount below cutout top handlebar clamp for a sleek look (handlebar riser kit with gauge cutout or gauge relocation kit may be required depending on application); Features a tachometer/speedometer combination with a programmable shift light and includes gear indicator; Features vital reads such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor vital signs on bike; Plugs directly into the stock harness and works directly with CANBUS system; Display range: 0-124 mph; Effective temperature range: -4°F-185°F (-20°C-85°C); 12VDC battery voltage; Measures 3-7/16” L x 1-1/16” W x 2-5/8” H; XL models may require purchase of separate fuel level sensor kit (OEM PART #6120008) for fuel meter to function properly.
