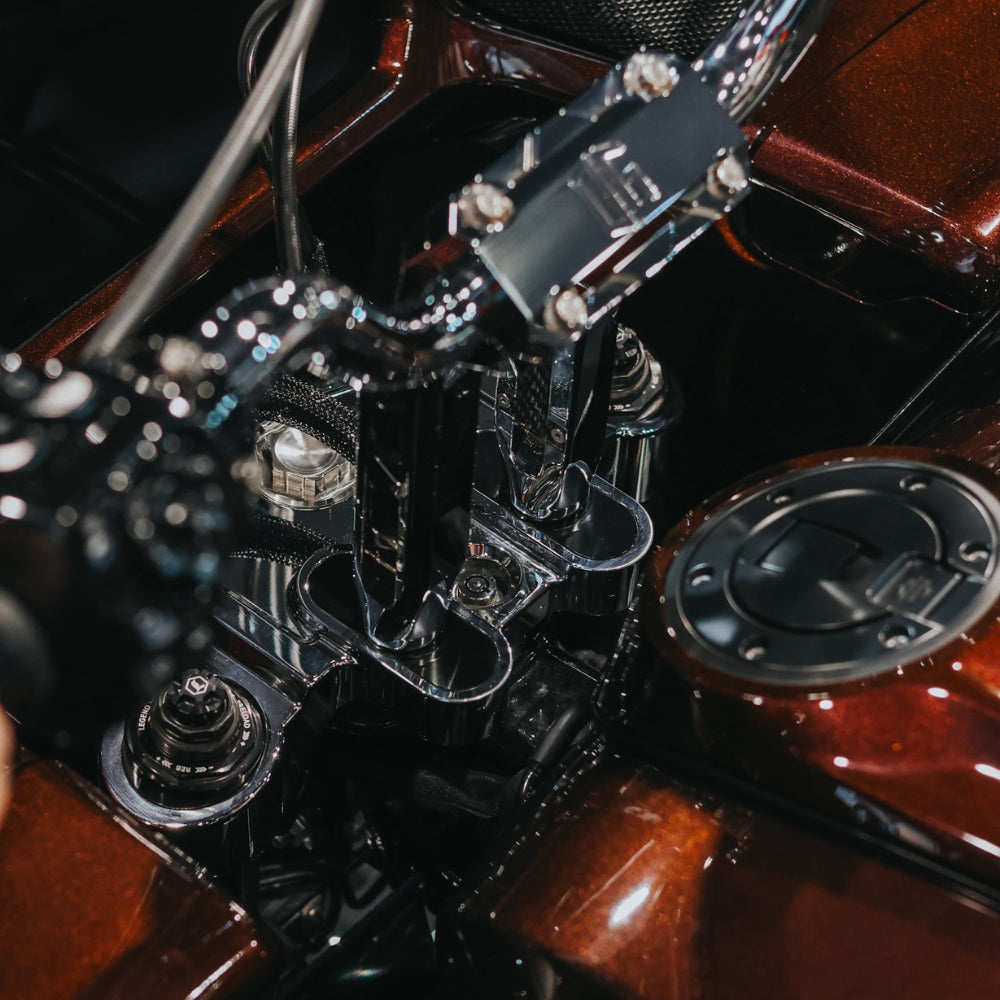

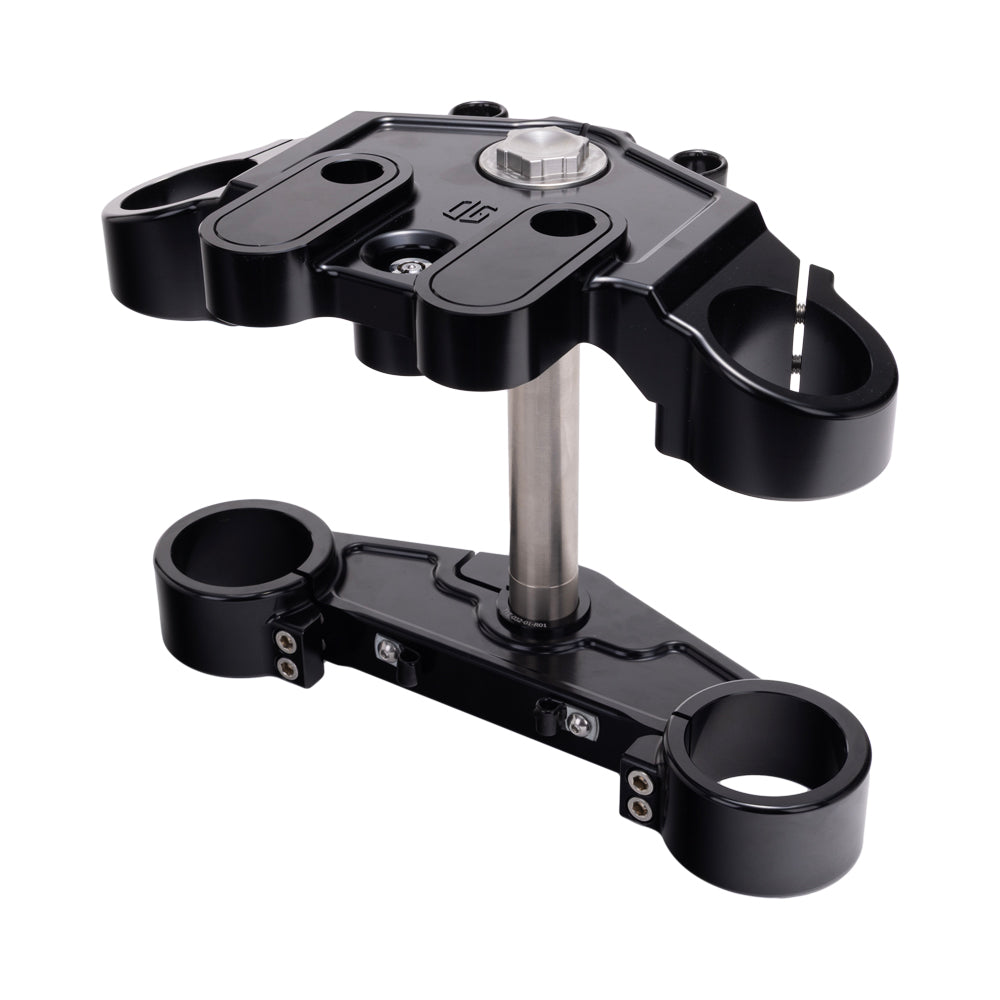

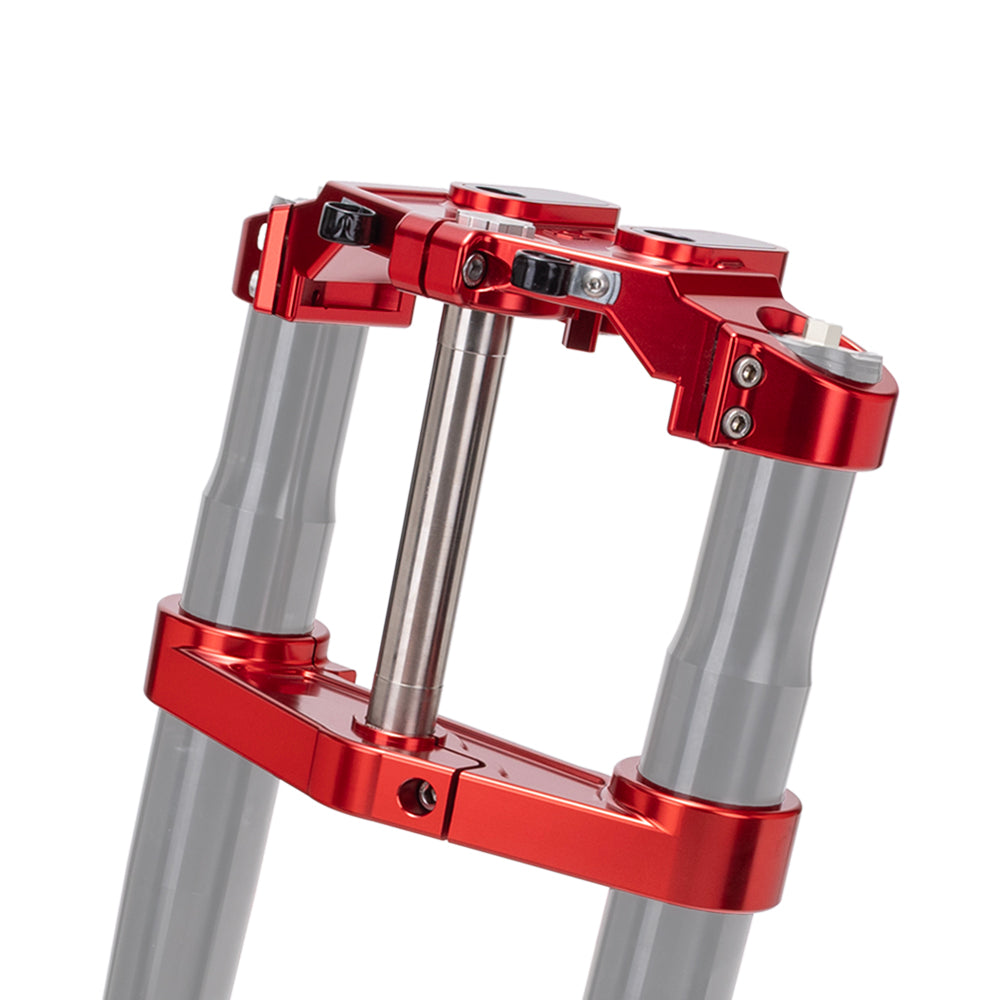

OG 2023-Up Touring CVO Drop 1″ Triple Trees kit

OG 2023-Up Touring CVO Drop 1″ Triple Trees kit for Harley-Davidson Touring models is the ultimate performance bagger front-end upgrade. It is engineered to maximize performance & rigidity featuring taller fork tube clamping sections and a thicker cross-section over the stock trees.

This Triple Trees kit will also allow you to lower your fork up to 1″, which will raise your bike height and provide better ground clearance. This is a great alternative for those looking for a more aggressive stance. Works well with 14-inch shocks.

It will allow you to set your Risers exactly where you want them with three mounting location options; Stock, +1” & +2” pullback towards the rider (+1” Adapters) sold separately).

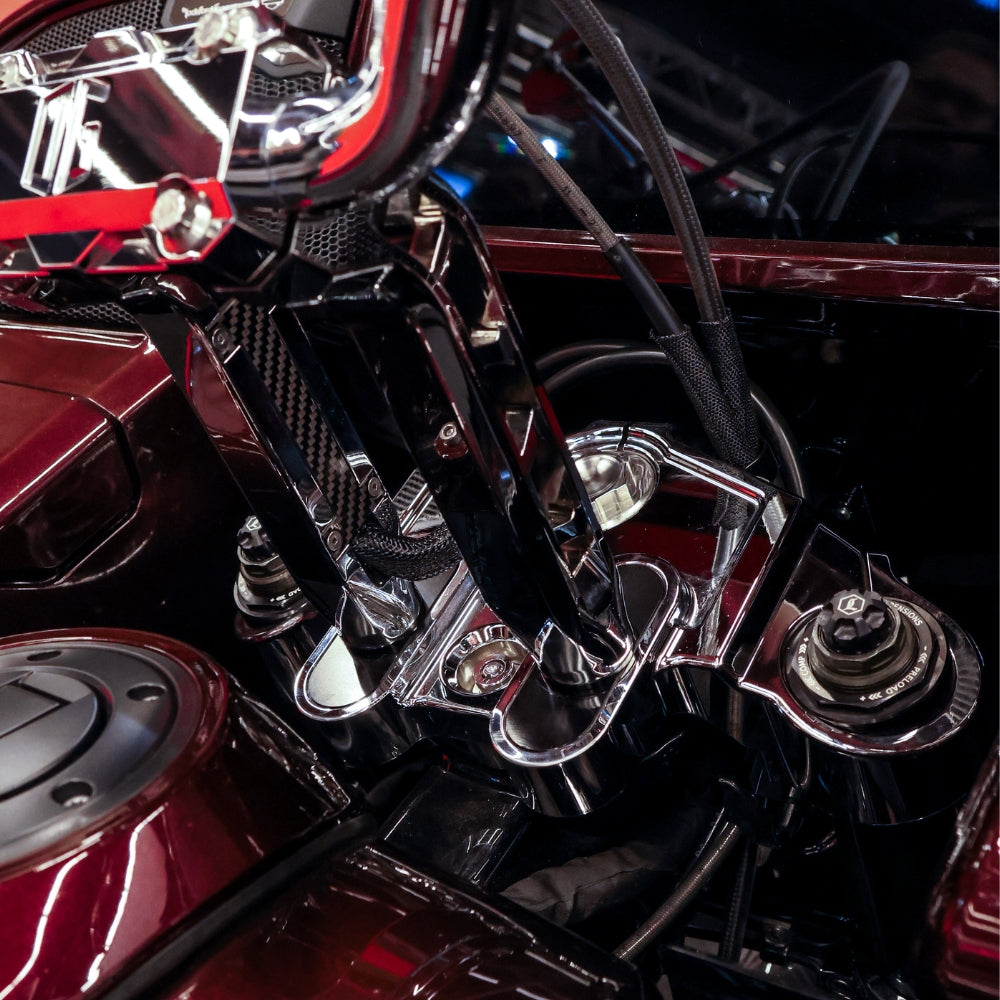

Also features pocketed key lock, wire & brake line(s) management clamps for that clean install and factory look.

*Risers bushings are required for this kit and sold separately.

Features

• 1″ Drop feature
• Precision CNC machined 6061 T6 aluminum
• Stem axle & nut machined from 4140 Chromoly Steel for superior strength.
• Designed to match the OEM rake angle and triple tree offset ensuring a straightforward installation and maximizing performance

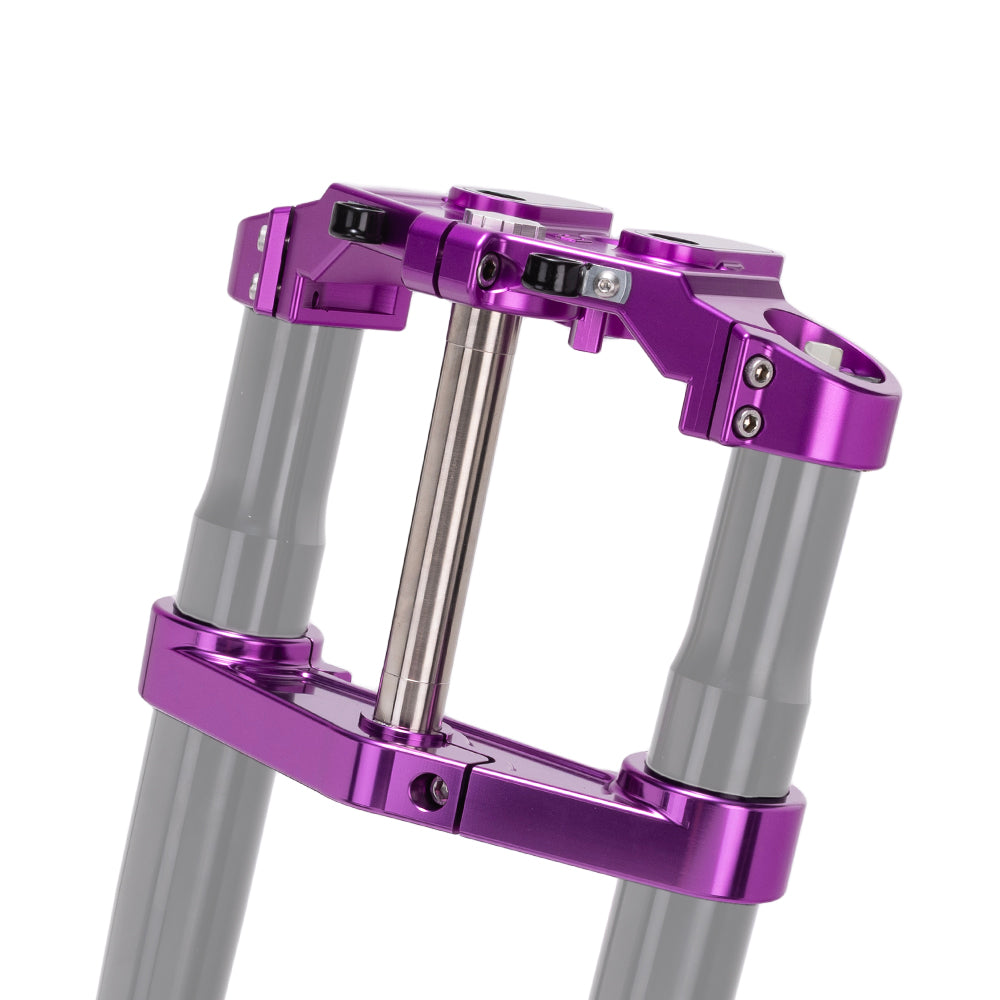

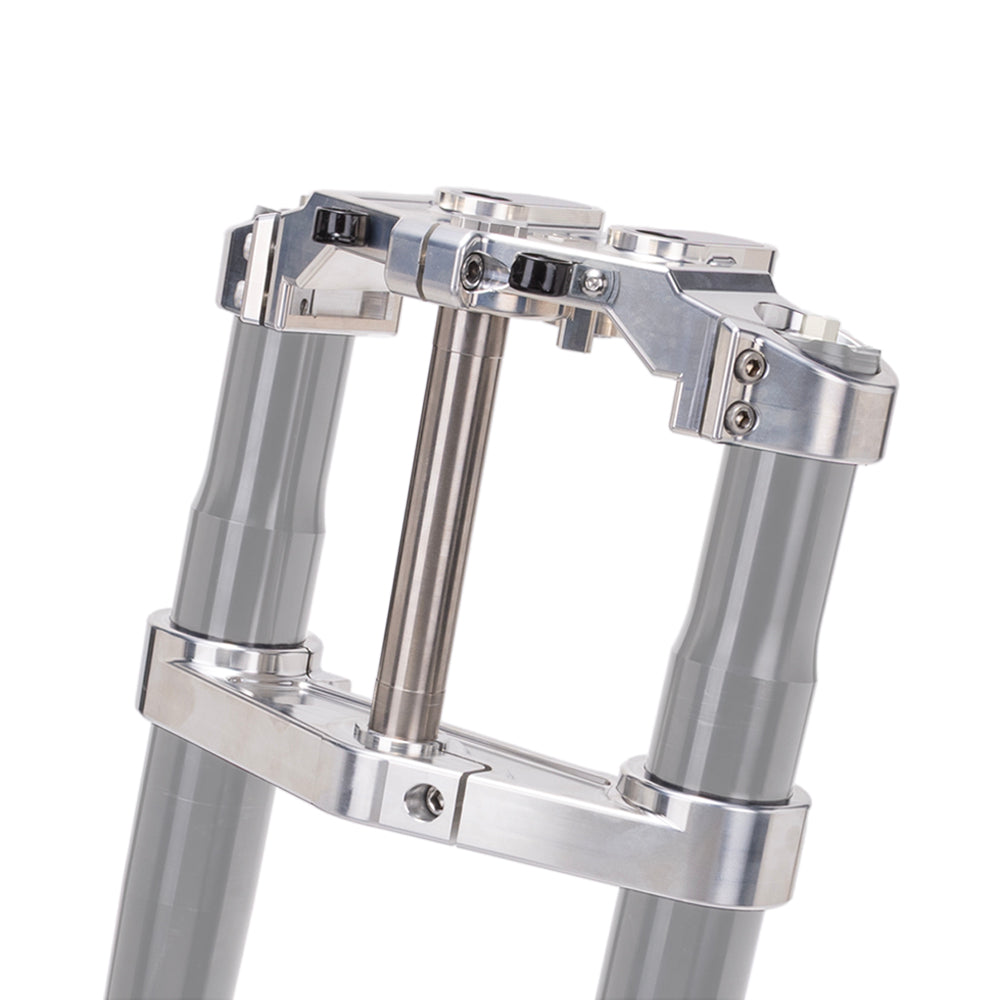

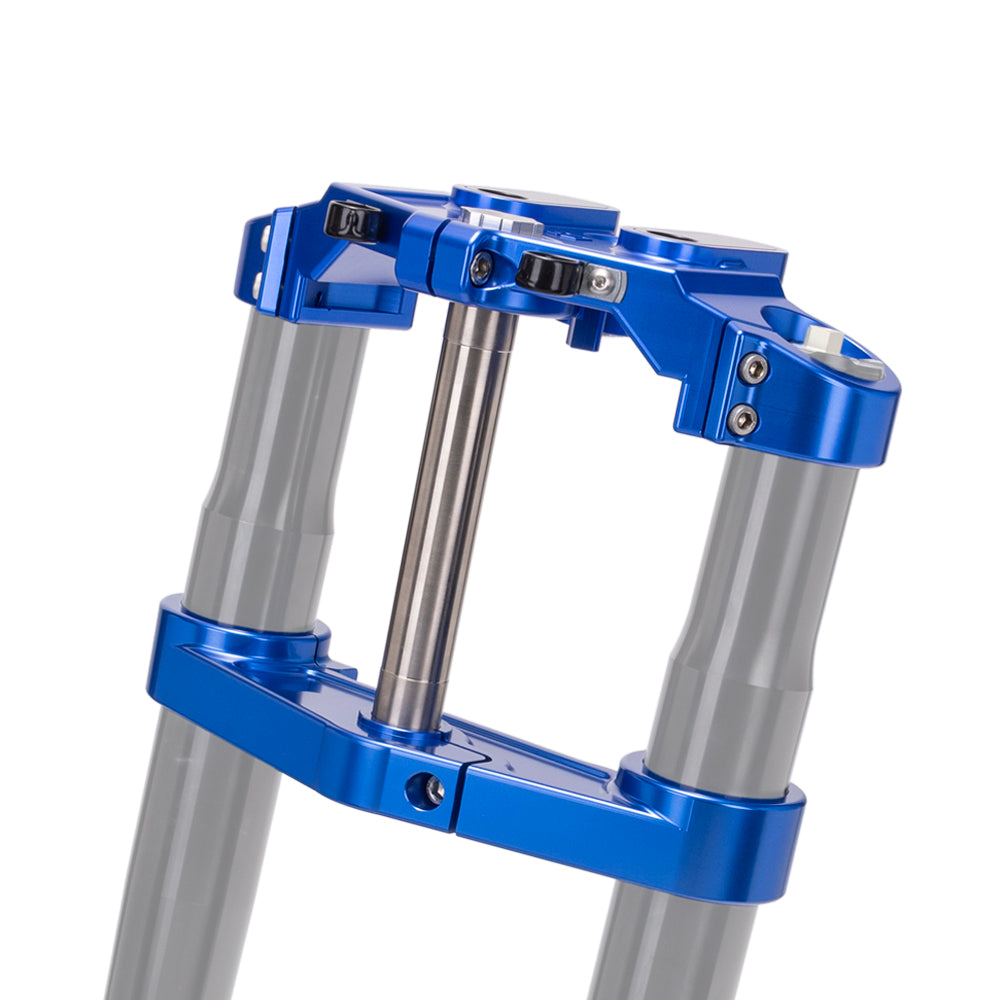

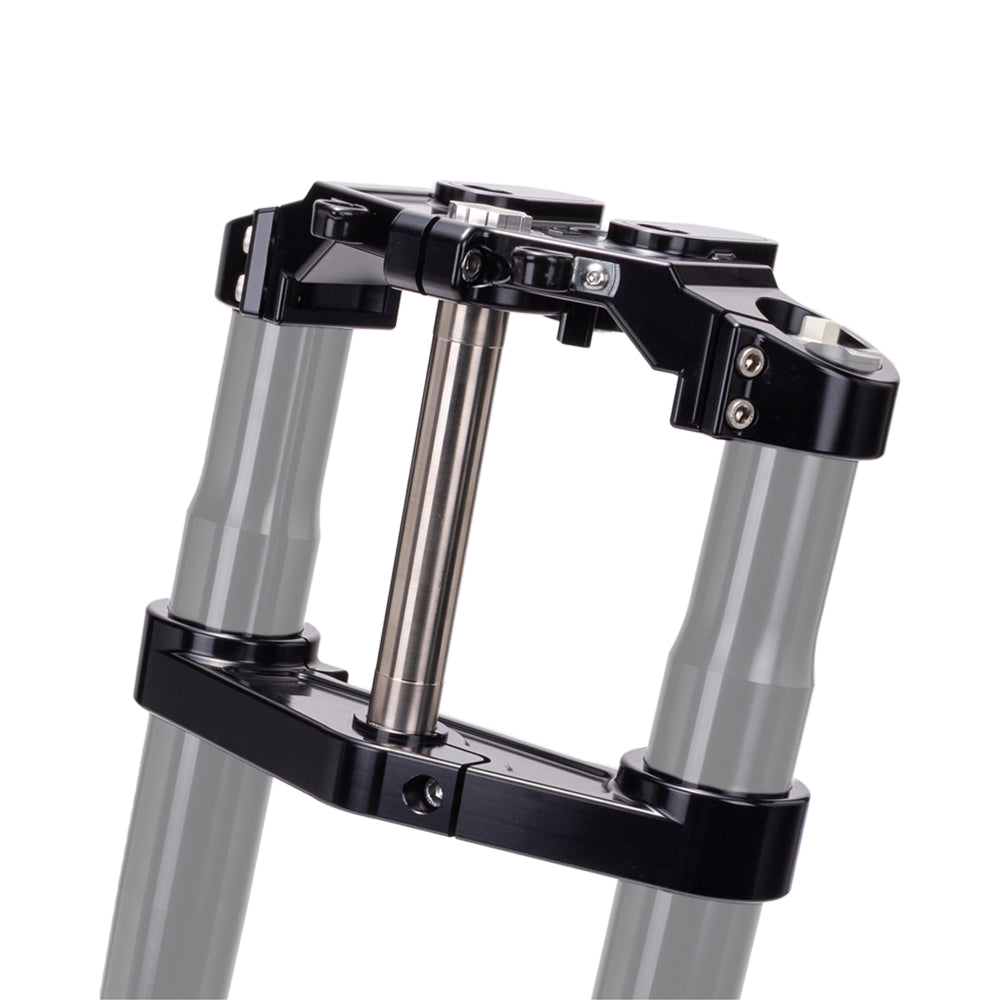

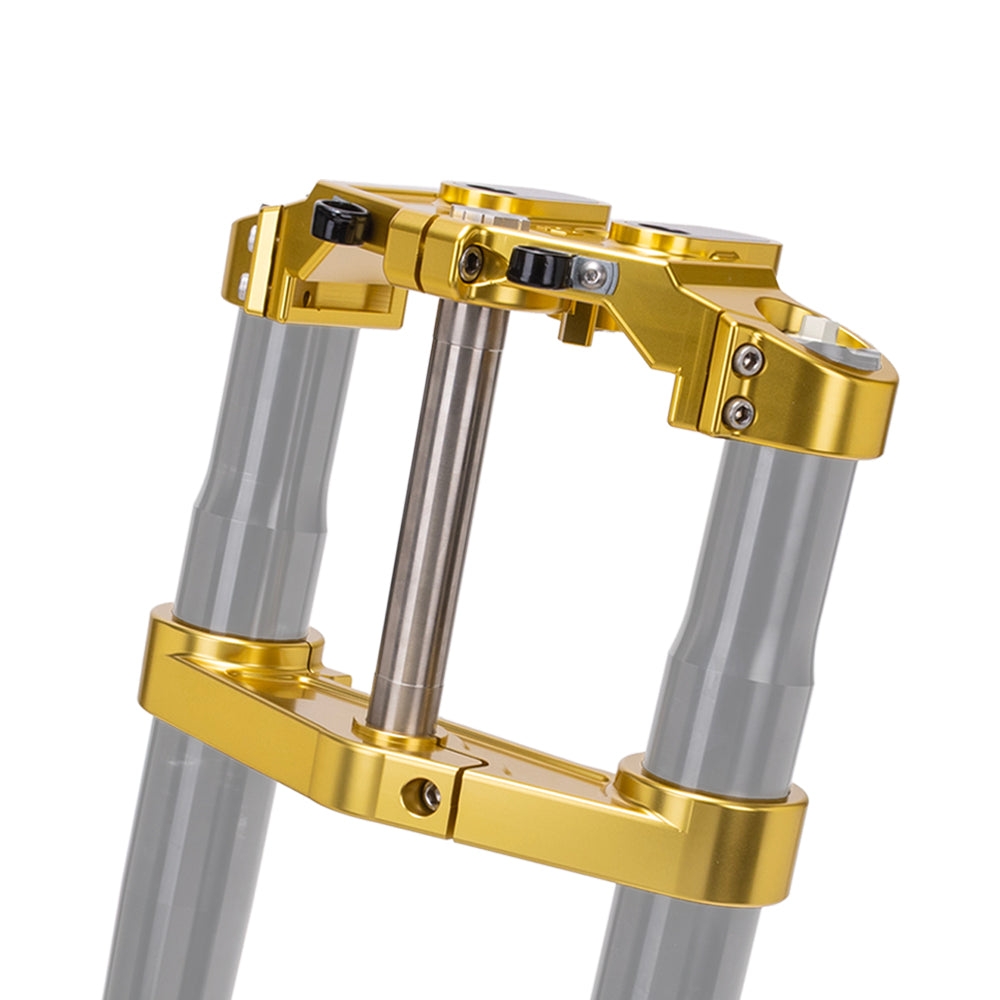

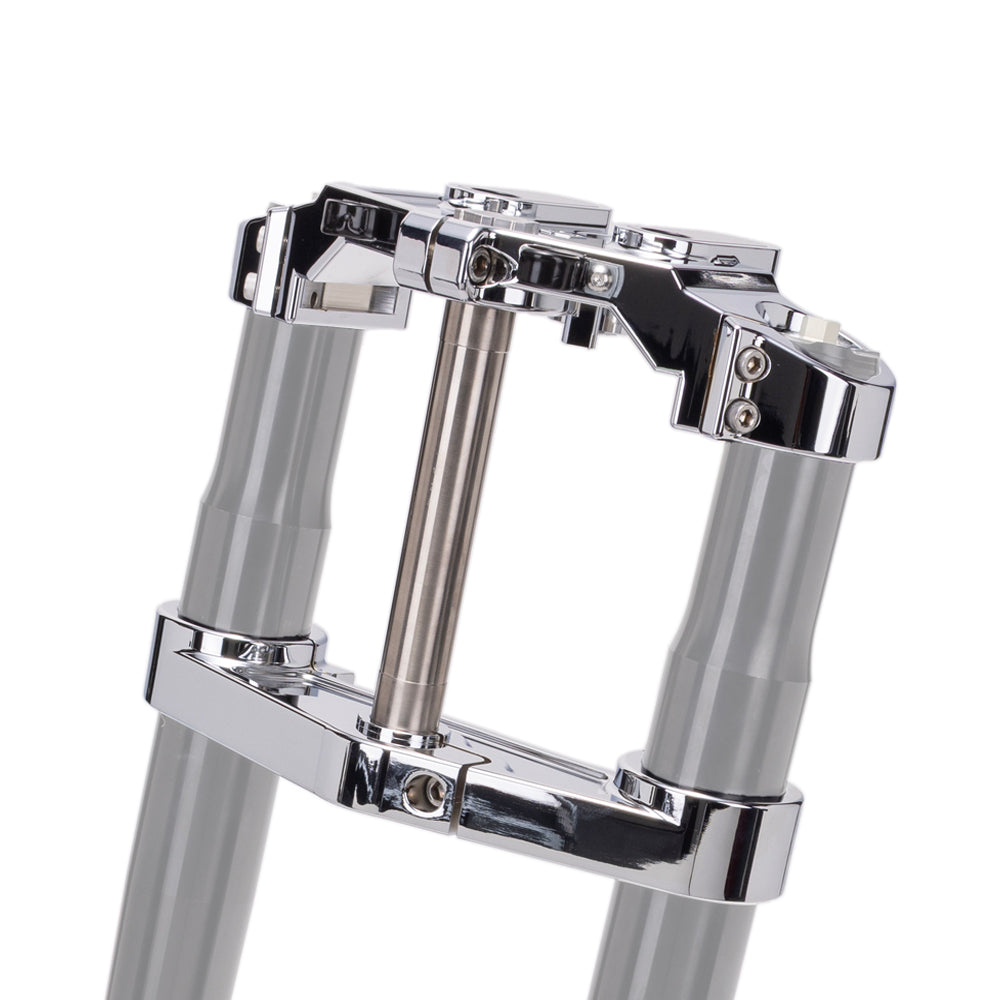

• Anodized & Chrome finishes available
• Machined OG logo
• Uses standard FL bushings
• Stainless steel hardware included
• Includes two Wire management clamps (one on both sides)
• Includes two brake line(s) management clamps
• Supplied with a lock and key to keep the fork lock feature
• Innovative reversible Risers mounting Block allows three riser positions; stock, +1” or +2” pullback towards the rider. +1” Adapters are sold separately

Fitment

• Fits all 2023 to present CVO & CVO ST models equipped with an inverted front-end
• Fit with Ohlins FGRT 307 Touring CVO Inverted Front Forks
• Does not fit Street Glide models due to fairing mount locations

Installation

Click here for installation instructions
