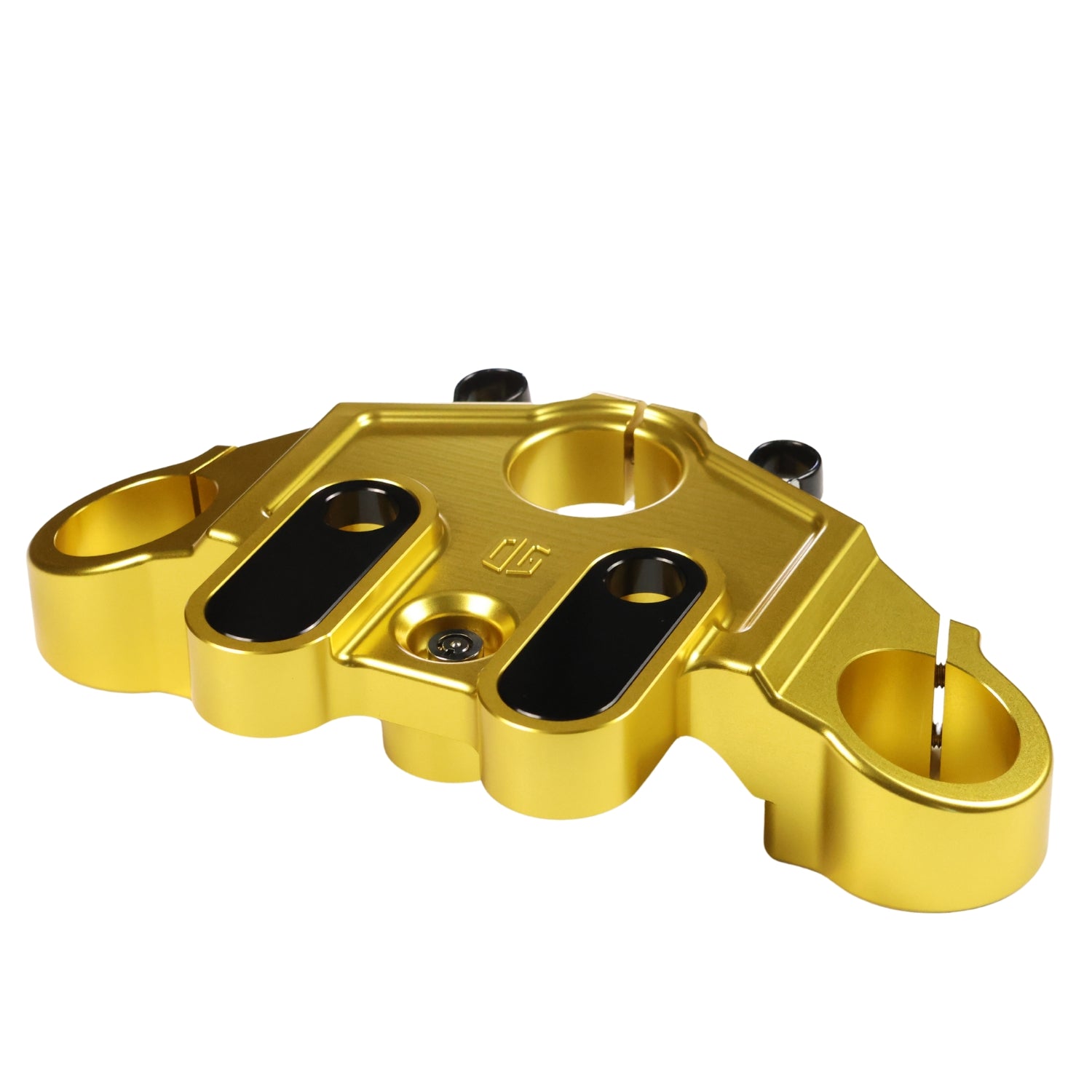

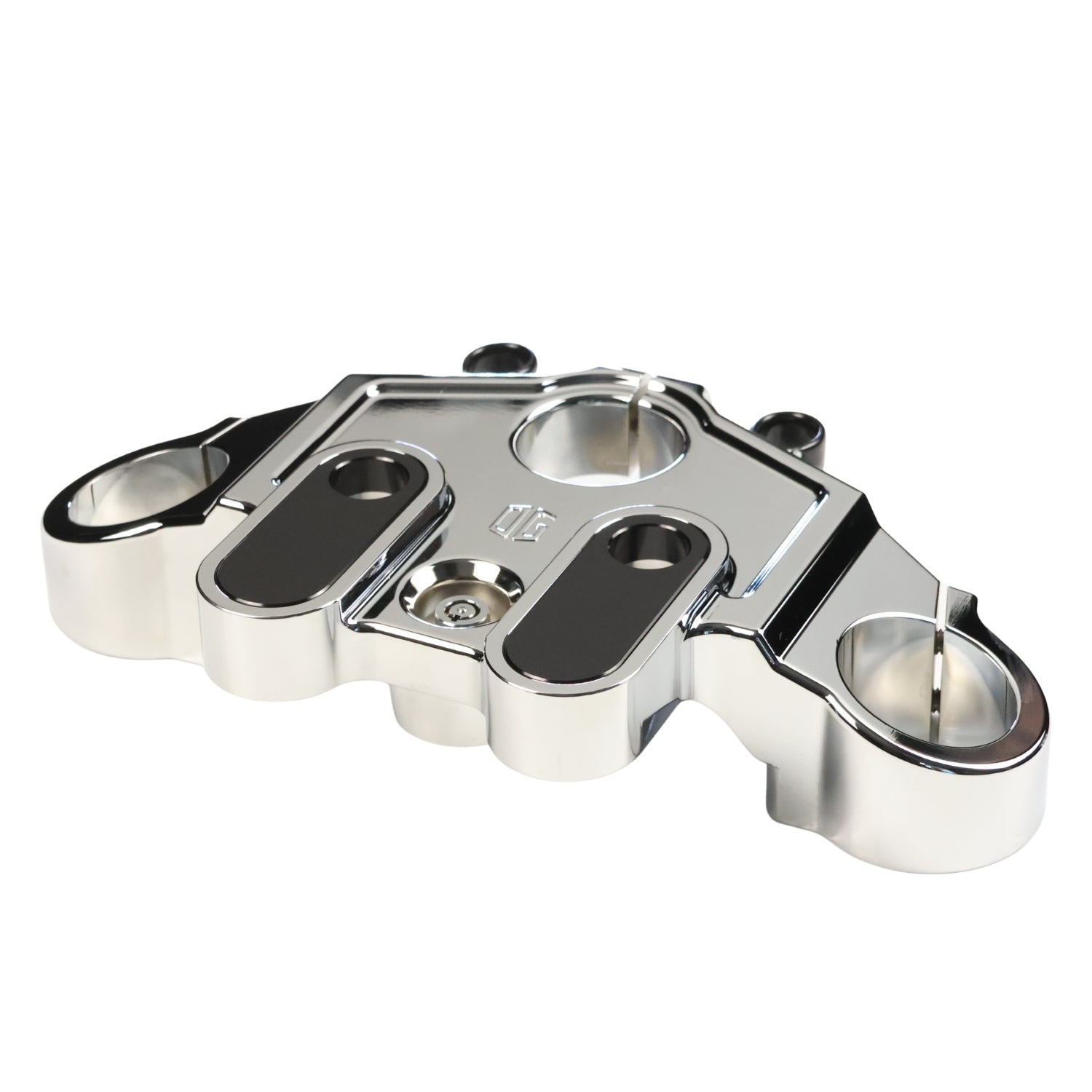

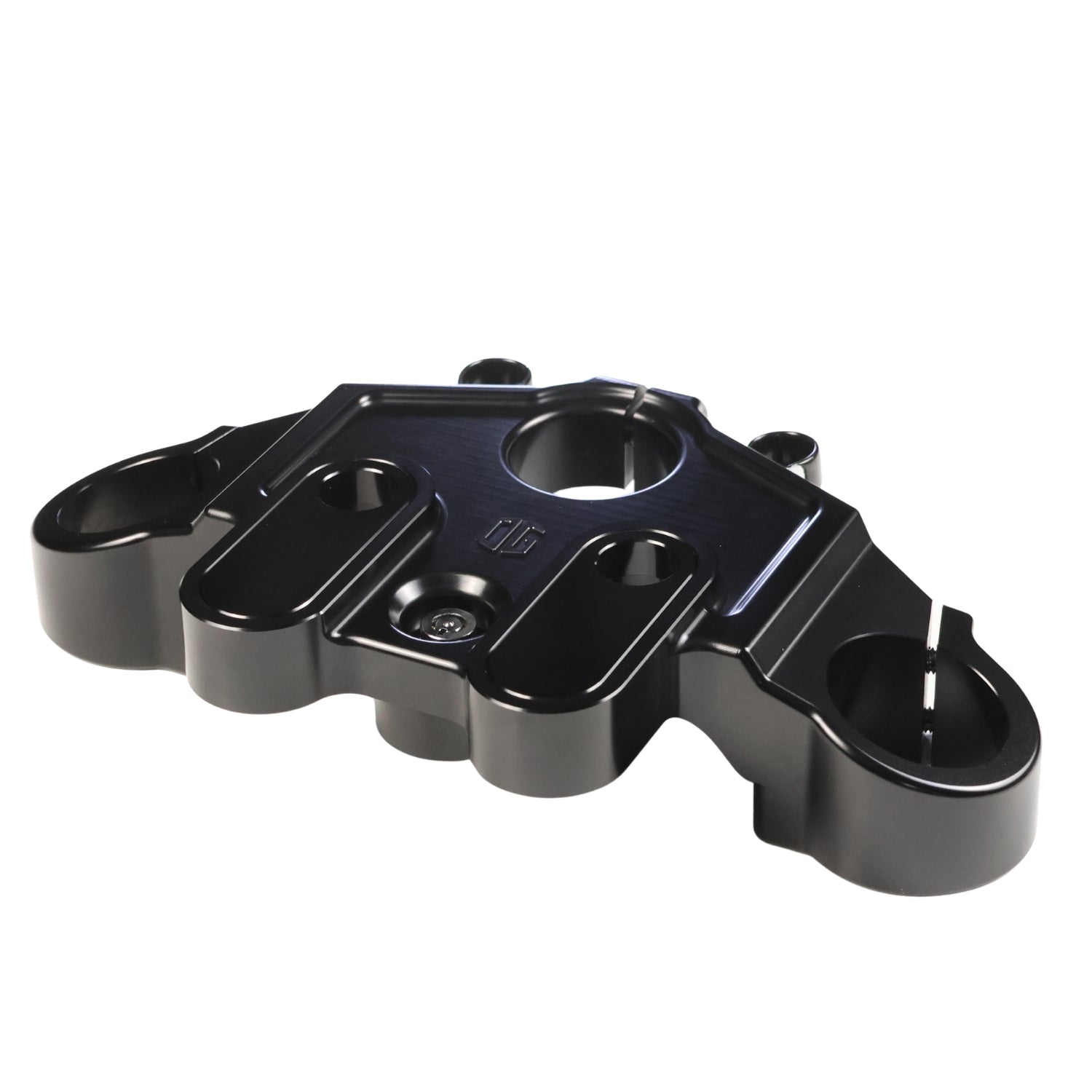

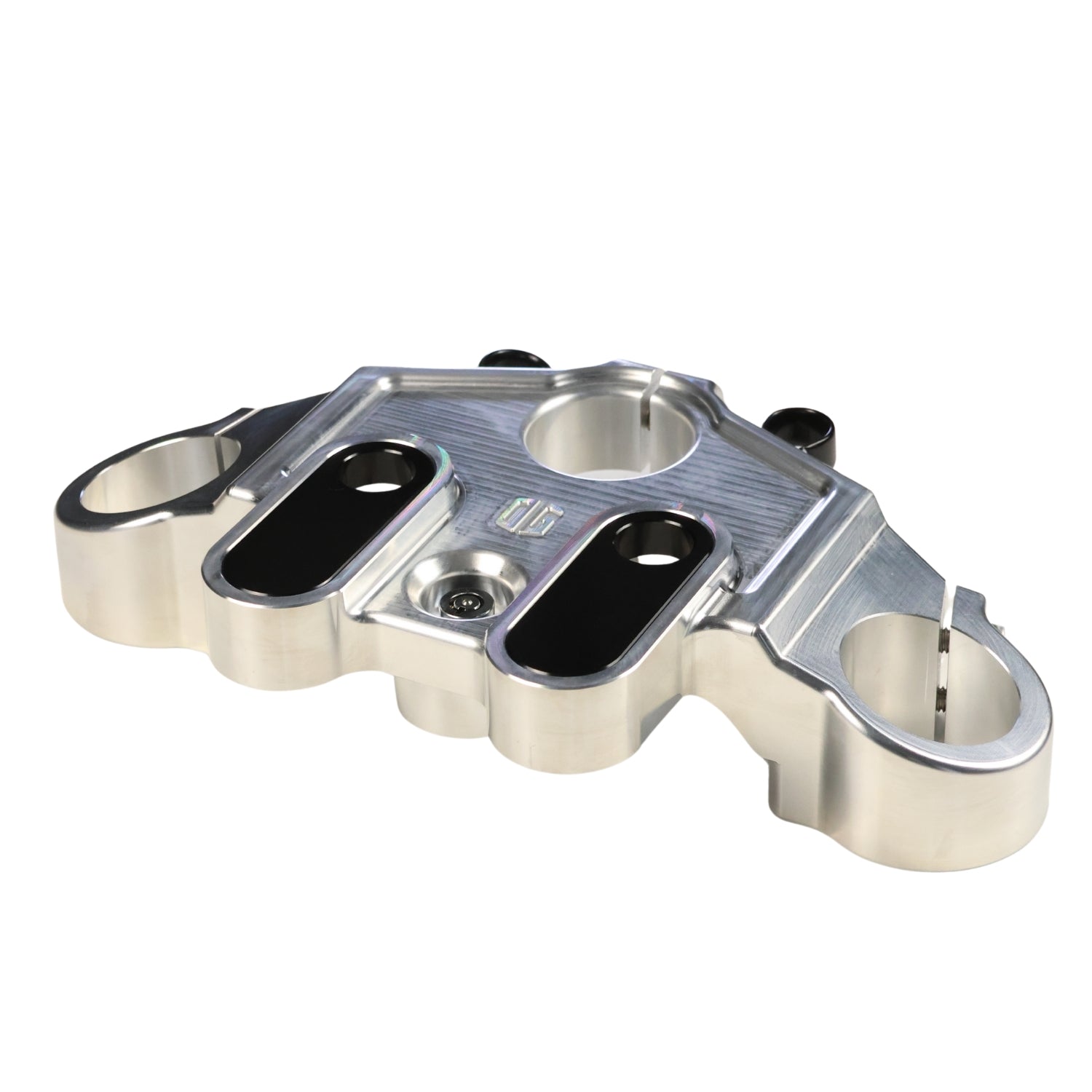

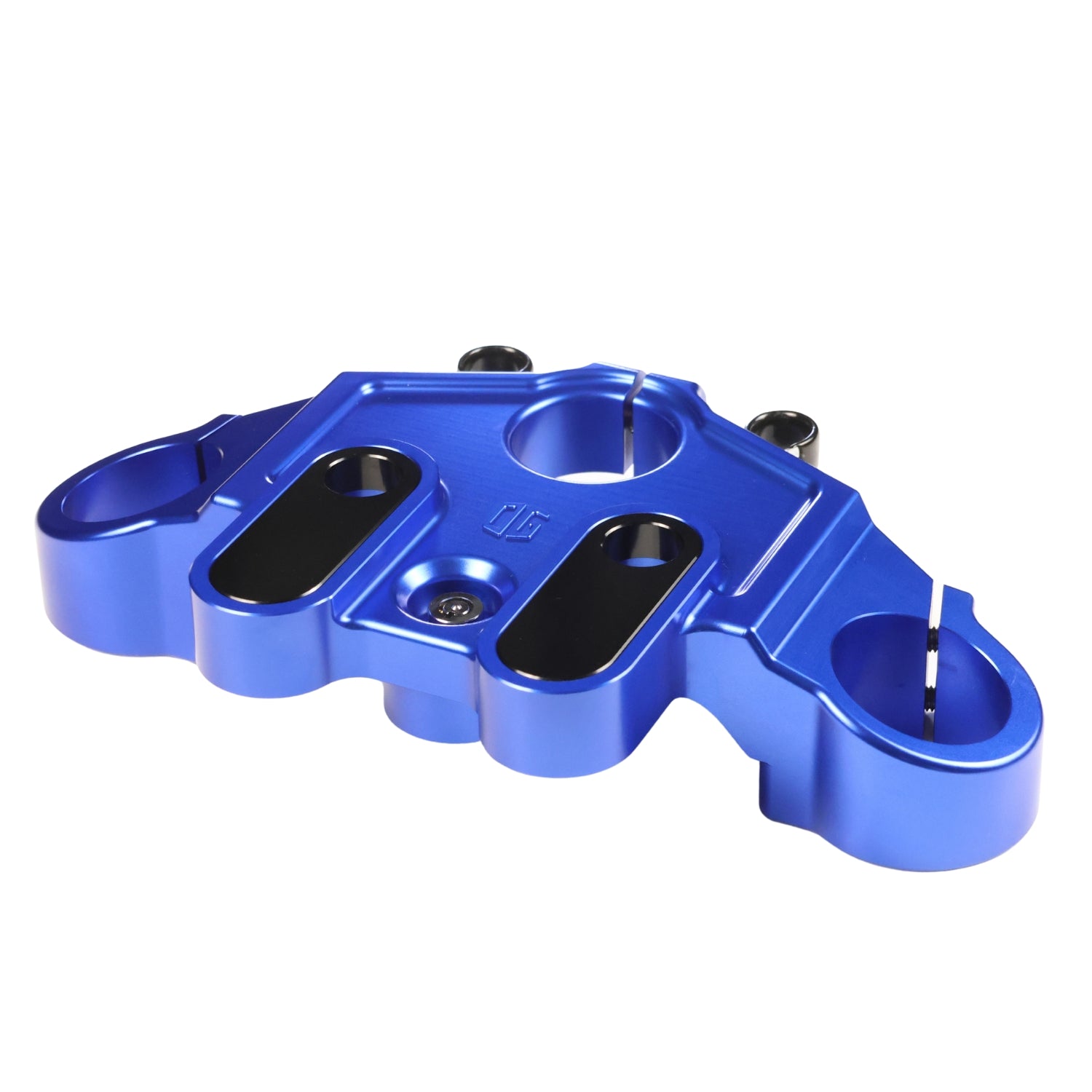

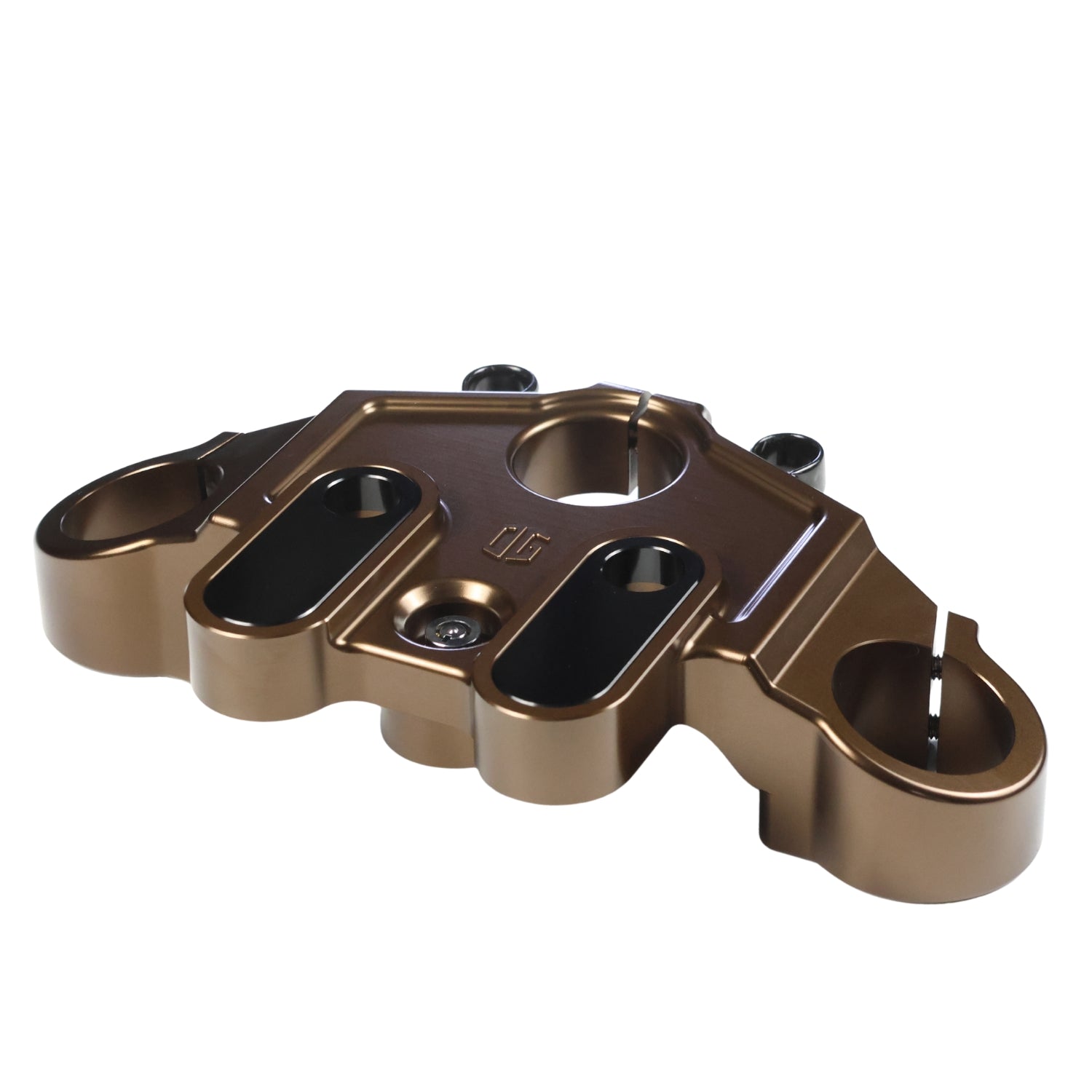

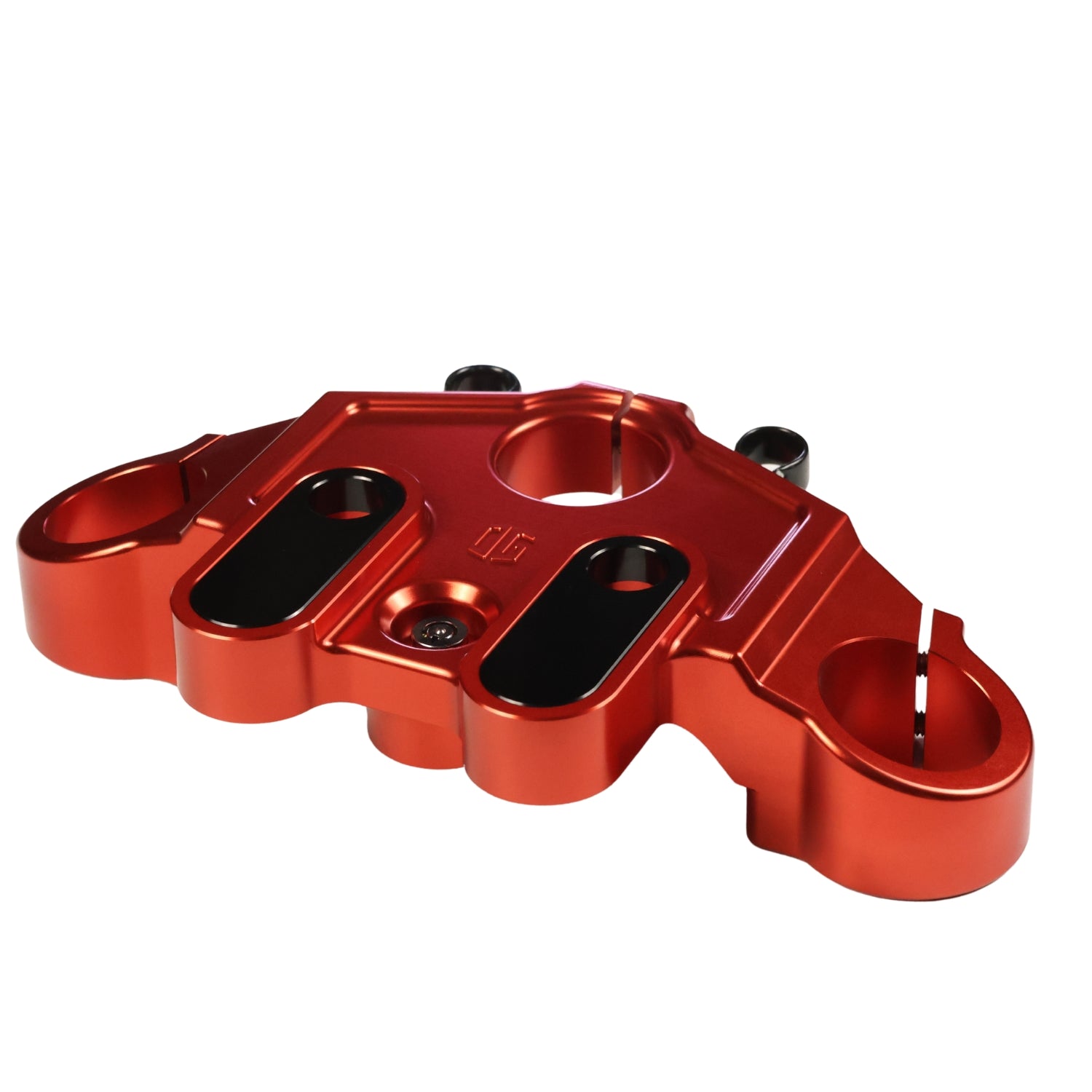

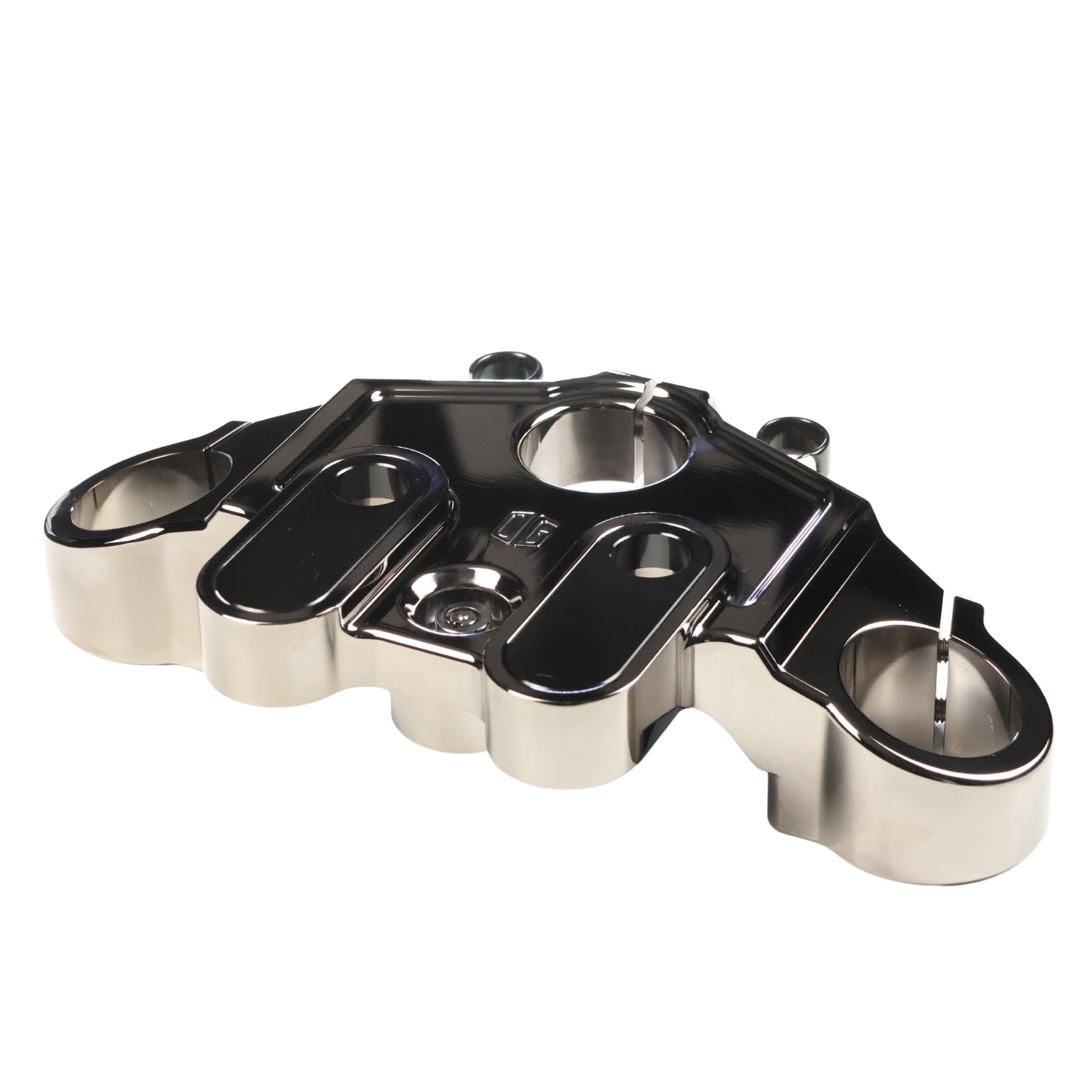

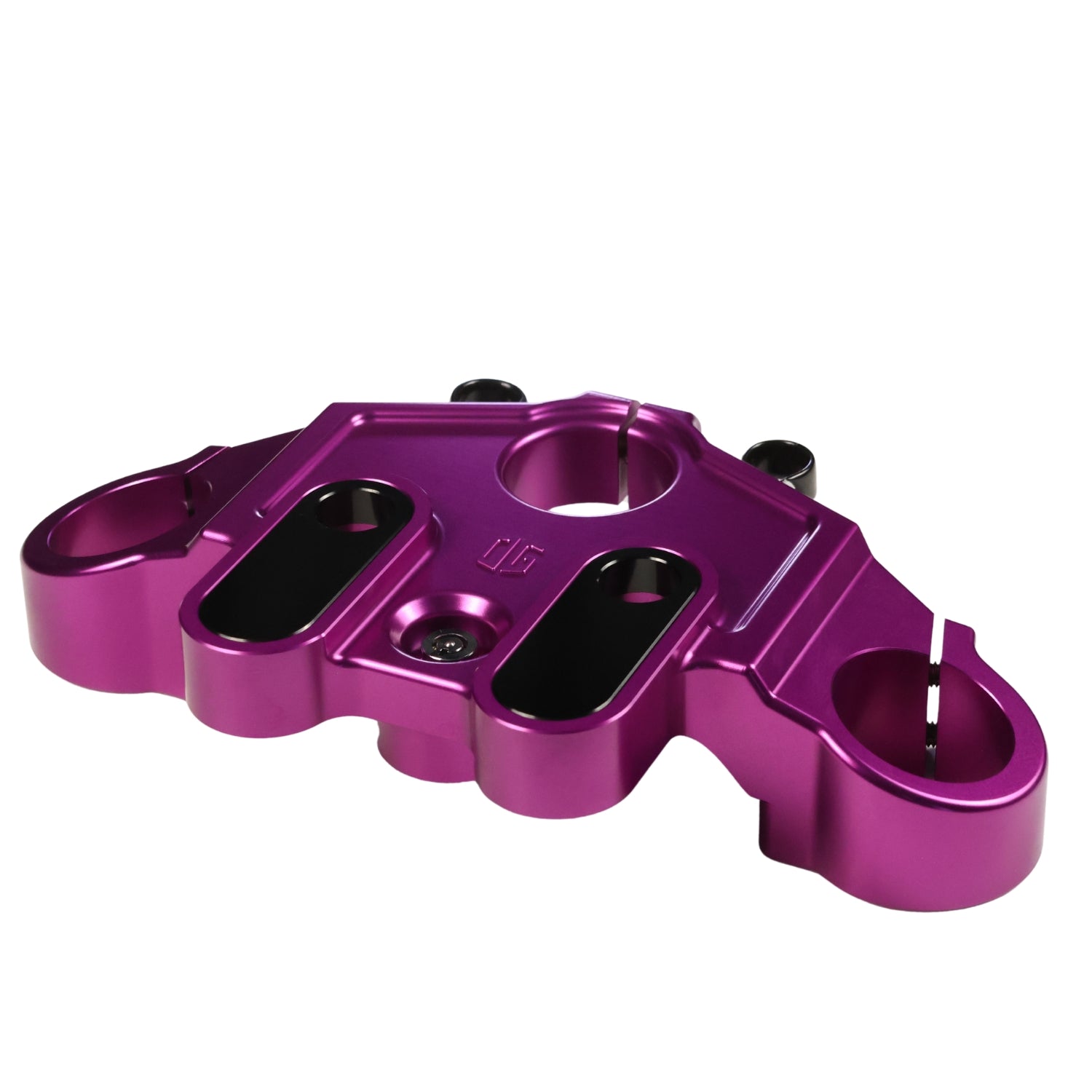

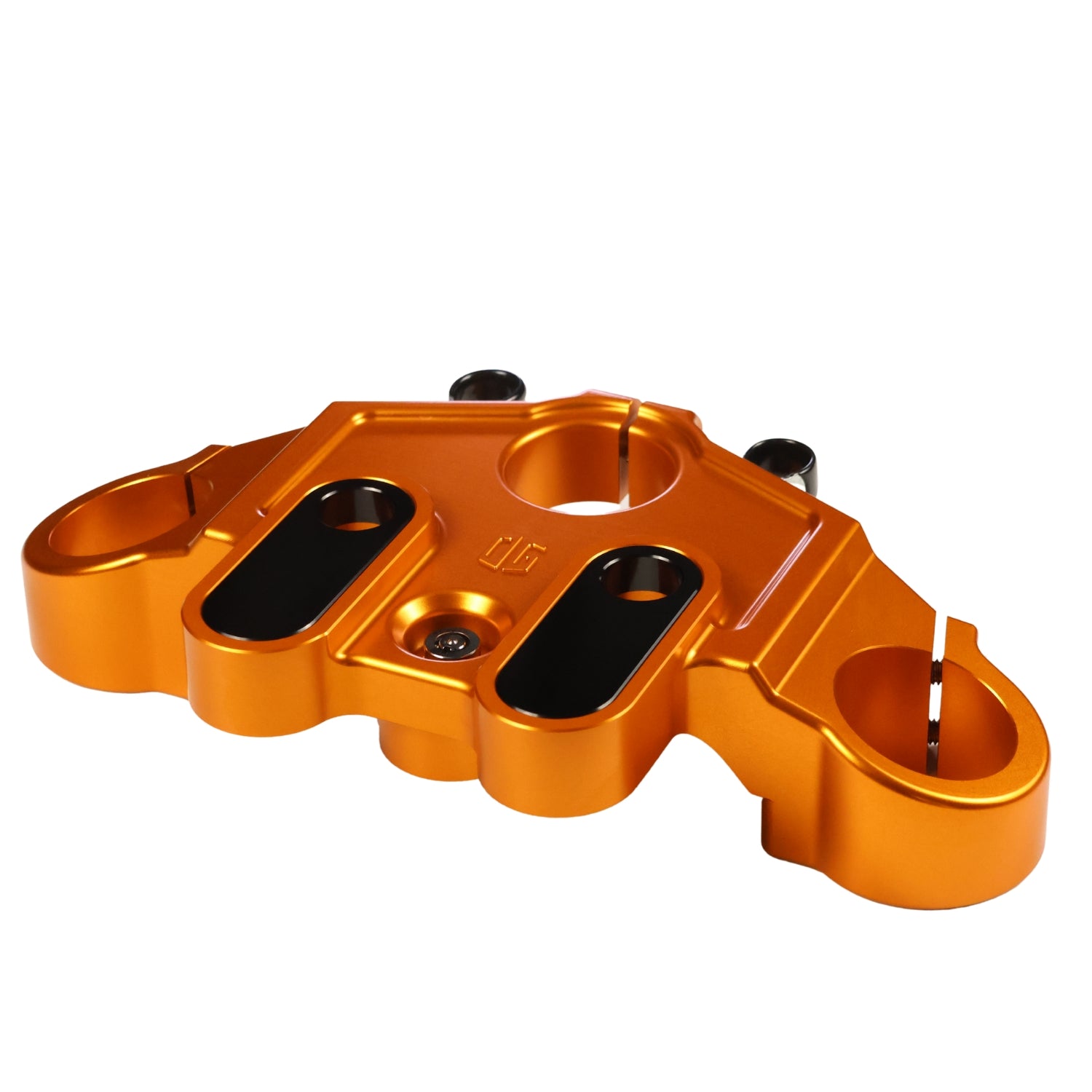

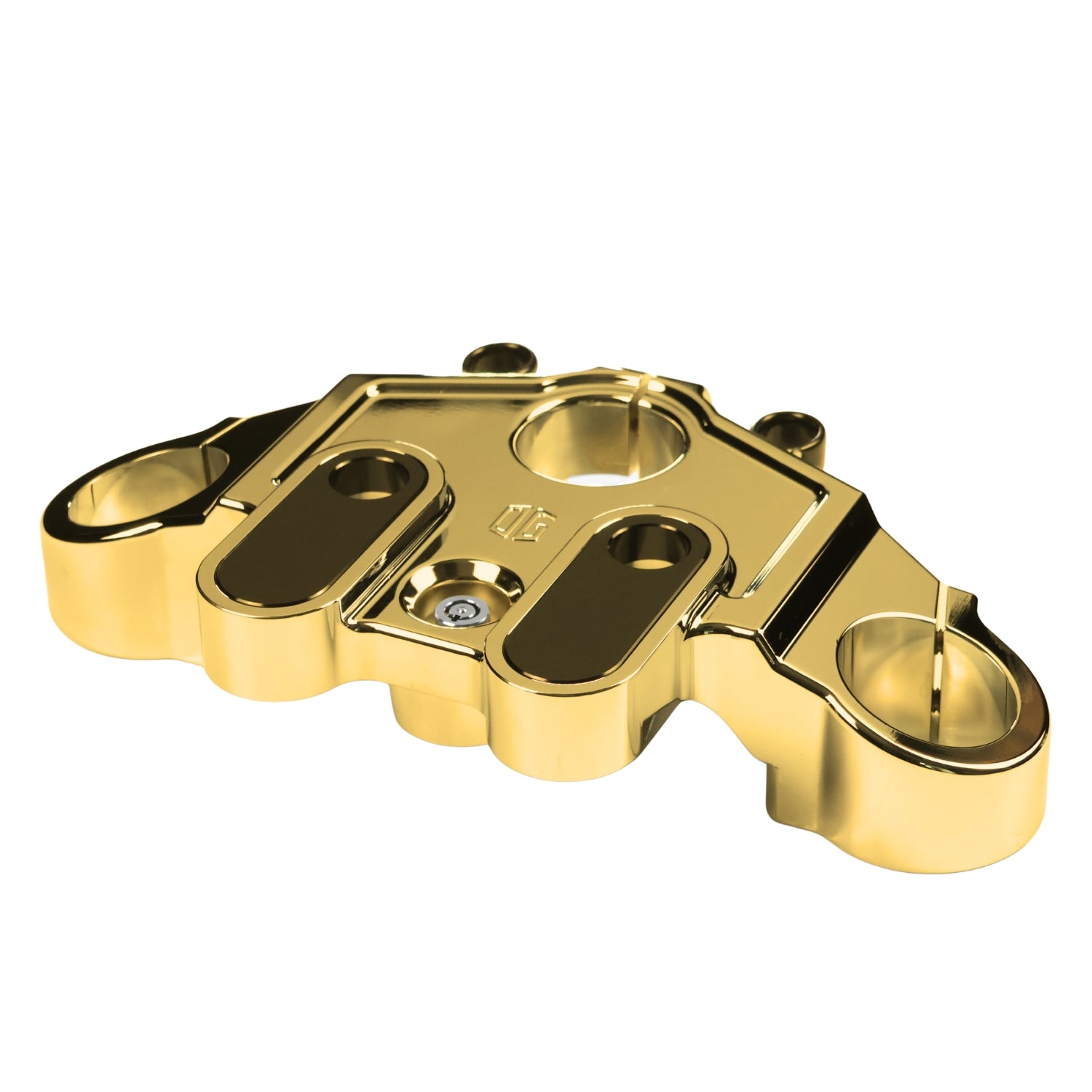

OG 2014-2023 Touring Drop 1″ Top Triple Tree

Our OG Drop 1″ Top Triple Tree for Harley-Davidson Touring models will allow you to set your Risers exactly where you want them with three mounting location options; Stock, +1” & +2” pullback towards the rider (+1” Adapters are sold separately).

This tree will also allow you to lower your fork up to 1″, which will raise your bike height and provide better ground clearance. This is a great alternative for those who don’t want to commit to using +2 tubes but are looking for a more aggressive stance. Works well with 14-inch shocks.

Also features pocketed key lock & wire management clamps for that clean install and factory look.

*Please note: If your bike still has the OEM Ignition switch/Fork lock, you will need to have your bike flashed with the “keyless CVO feature” at your local shop prior to starting the installation.

**Risers bushing are required for this kit and sold separately.

Features

• 1″ Drop feature
• Precision CNC machined 6061 T6 aluminum
• Designed to match the OEM rake angle and triple tree offset ensuring a straightforward installation and maximizing performance
• Hard Anodized & Chrome finishes
• Machined OG logo
• Uses standard FL bushings
• Stainless steel hardware included
• Includes two Wire management clamps (one on both sides)
• Supplied with a lock and key to keep the fork lock feature
• Innovative reversible Risers mounting Block allows three risers positions; stock, +1” or +2” pullback towards the rider. +1” Adapters are sold separately

Fitment

• Fits all 2014-2023 with 49mm front-end Road Glide models
• Will not fit 2023+ CVO models equipped with an inverted front end
• Does not fit Street Glide models due to fairing mount locations
• Does not fit Road King models due to nacelle mount locations

Installation

Click here for installation instructions
